Automation Requires Precision

Precision, stability and flexible handling are important features for the use of the PCB Magazines in automated assembly lines.
The stable and robust frame construction guarantees a long lasting use of the cab magazine in your production. The rack walls are manufactured from conductive material.

Automation Requires Precision

Precision, stability and flexible handling are important features for the use of the PCB Magazines in automated assembly lines.
The stable and robust frame construction guarantees a long lasting use of the cab magazine in your production. The rack walls are manufactured from conductive material.

Series 600 - Width adjustment by screw clamp.

The series 600 is cost effective alternative with a simple width adjustment.
By backing off the four screw clamps the moveable rack wall can be pushed to the necessary PCB width.

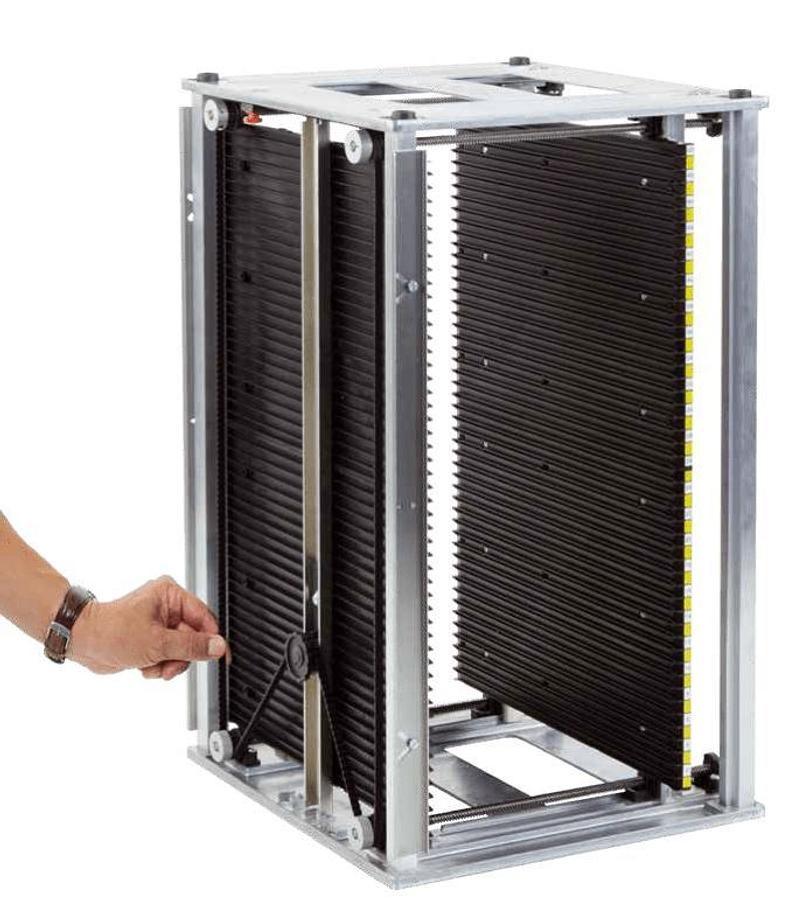

Series 700 - Width adjustment by gear belt.

Handling different PCB sizes the magazines have to be adjusted to the PCB width quite often.
The PCB Magazines of the series 700 are adjusted to the necessary PCB width within seconds.

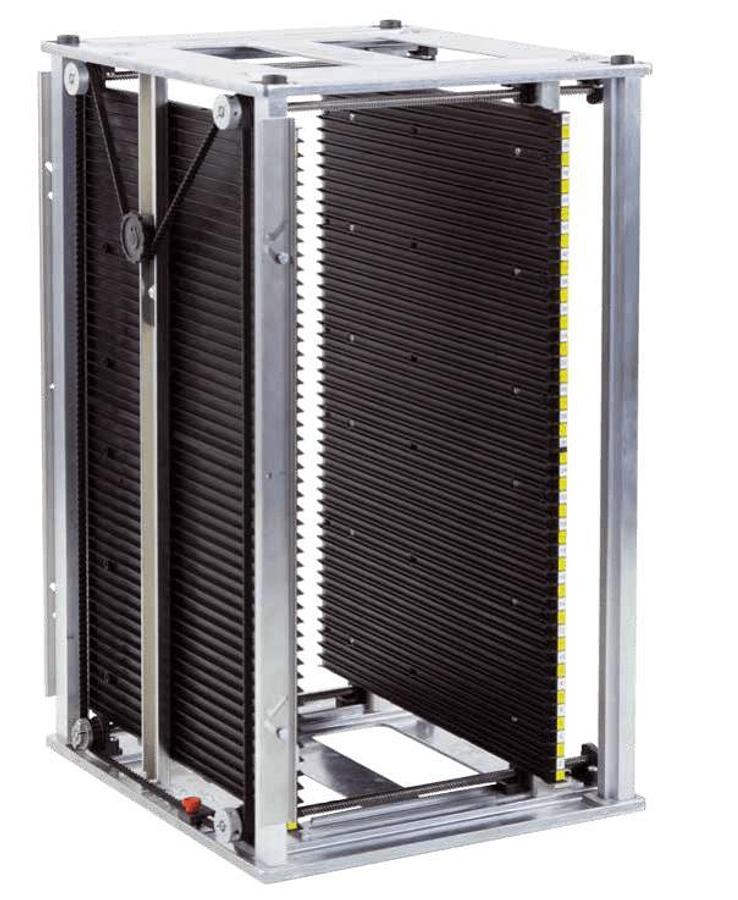

Series 800 - Variable width setting by pulling the gear belt motor-driven or by hand

Automatic operation: When put on a loader, the bar is moved to the outside by a wedge. At removal, the slot locks again. Manual operation: At lifting by hand, the bar is moved to the outside and locks in upper position. When lifting again, the slots are locked.

600 Series700 Series800 Series

Safe stacking

All the magazines can be stacked safely and in a space-saving manner with the help of our knobs provided on the upper plate.

Metal magazines

In the case of high mechanic force and high thermal force up to 200°C, metal side walls are provided.

Perfecting operation

Its vertical symmetry allows the magazines to be turned upside down if use is in perfecting mode. To be operated only without stacking knobs

Safe stacking

All the magazines can be stacked safely and in a space-saving manner with the help of our knobs provided on the upper plate.

Metal magazines

In the case of high mechanic force and high thermal force up to 200°C, metal side walls are provided.

Perfecting operation

Its vertical symmetry allows the magazines to be turned upside down if use is in perfecting mode. To be operated only without stacking knobs
