Simple Rework Station for all BGA/SMT Components

Max PCB Size: 12 x 18”/300 x 450mm

Max Component Size: 2.1 x 2.1”/55 x 55mm

Min Component Size: 01005

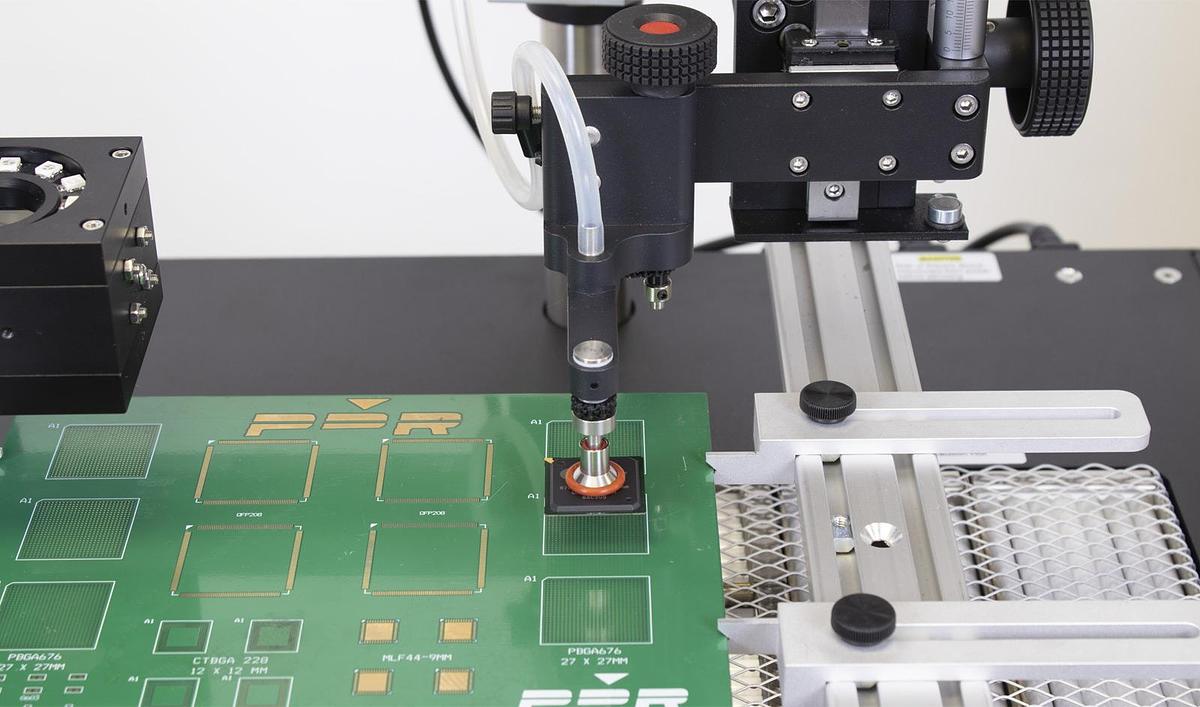

Component Removal: Manual Pick-Up System

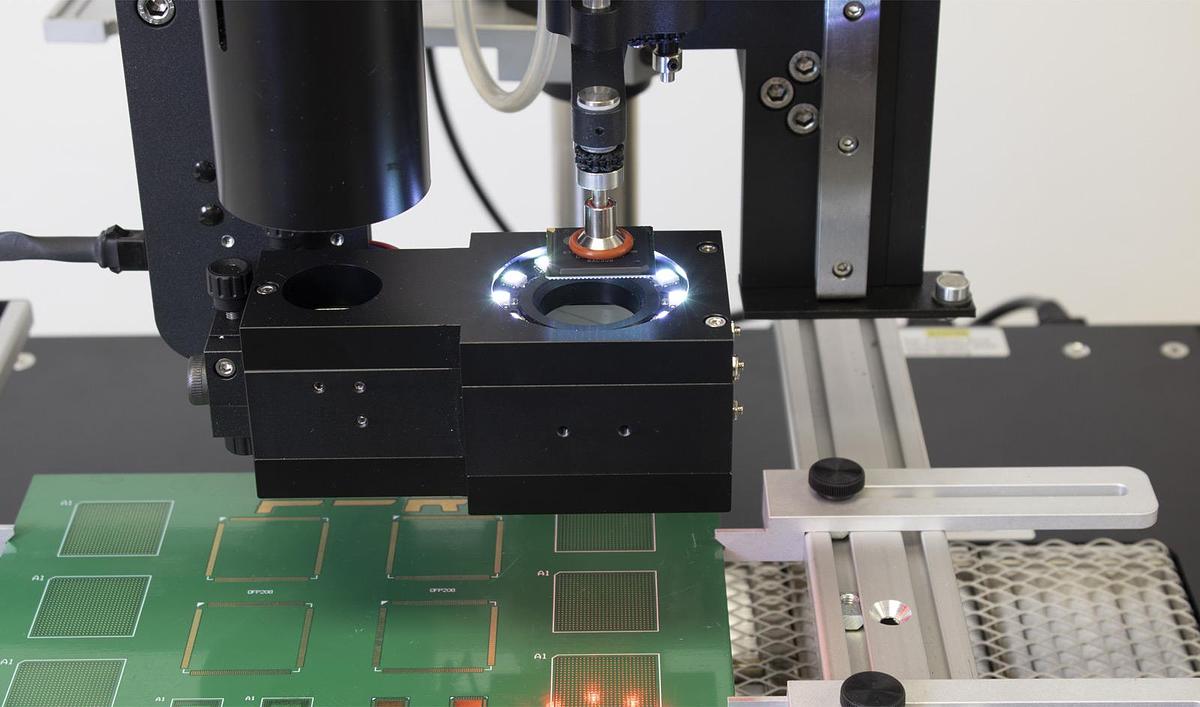

Component Placement: Split Beam Prism Alignment/x50 Magnification

Placement Accuracy: Up to 10um

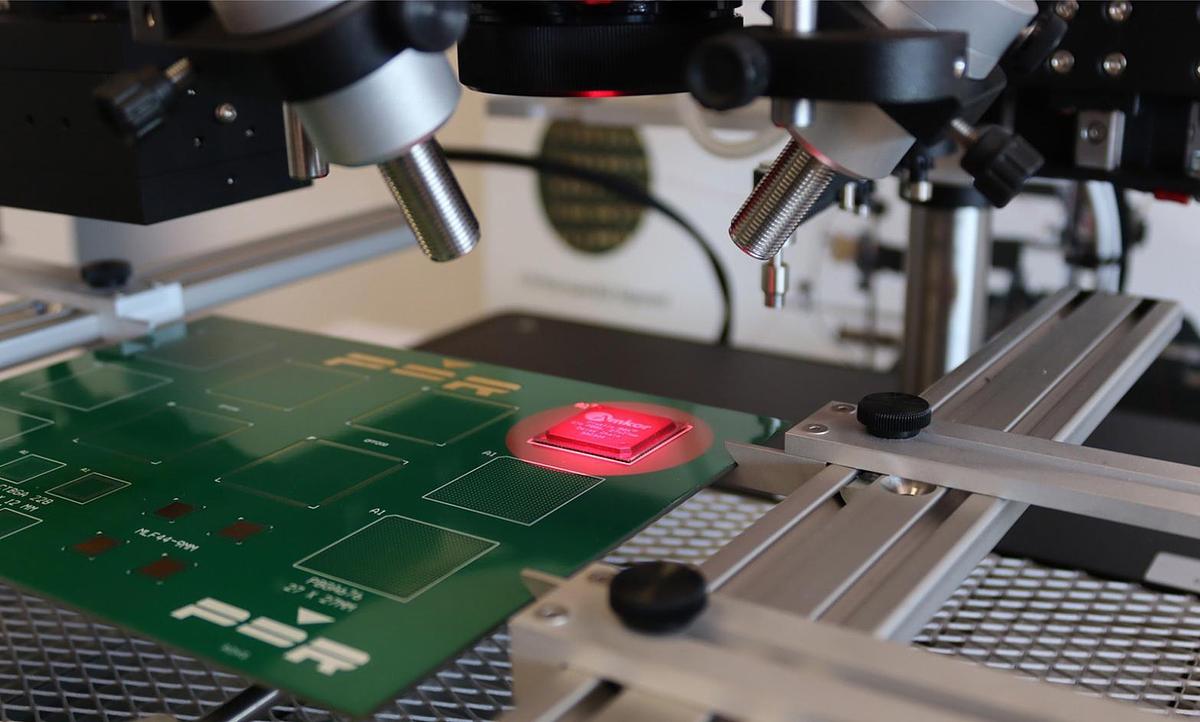

Top Heater Power: 150W Focused Infrared up to Ø70mm Spot

PCB Preheater Power: 2800W Medium-Wave IR (3 Zones)

PCB Preheater Heating Area Size: 14.1 x 9.4”/360 x 240mm

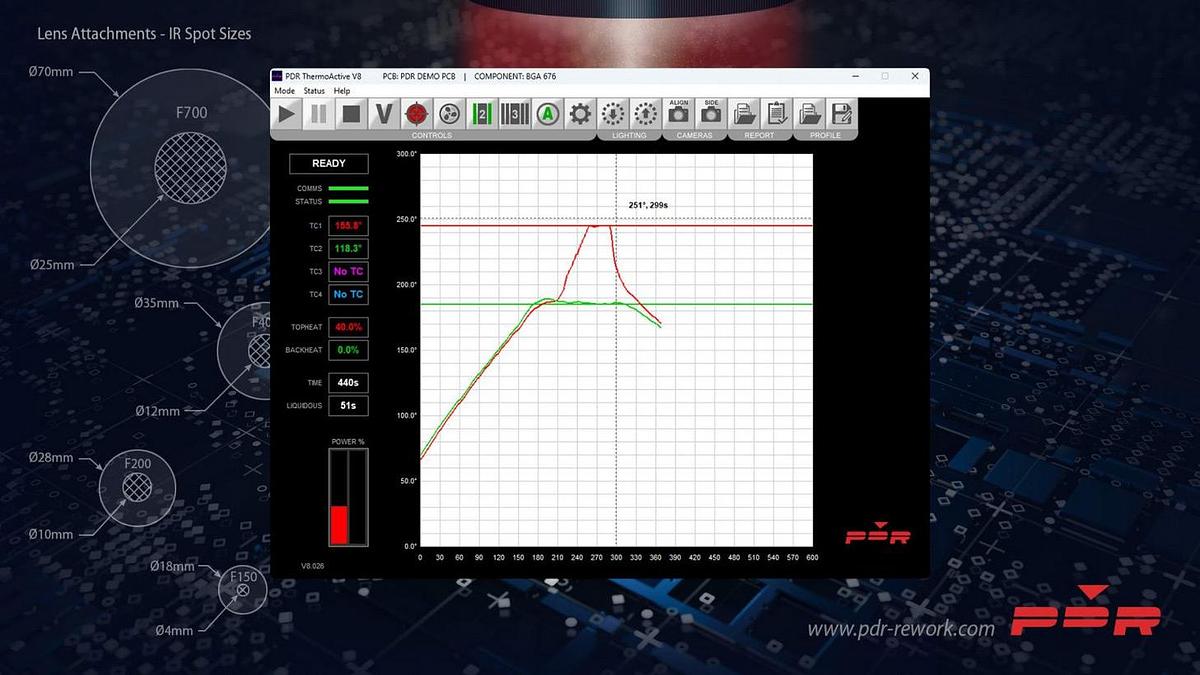

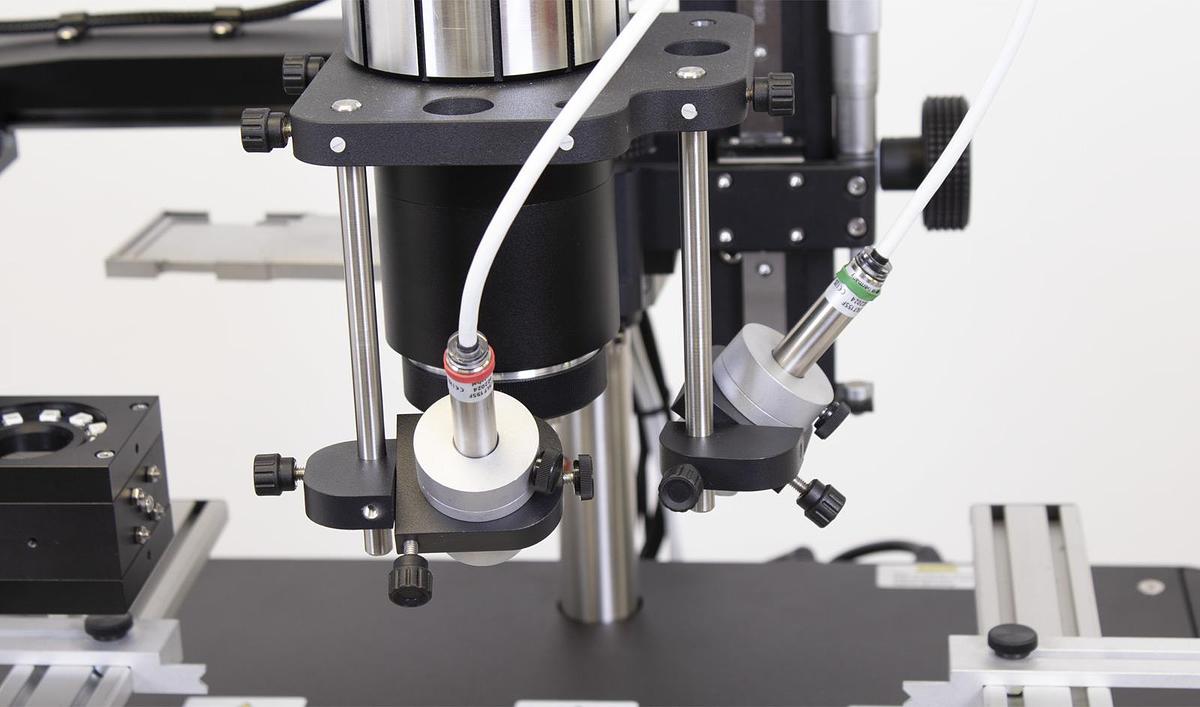

Component Temperature Sensing: Non-Contact IR Sensor

PCB Temperature Sensing: Non-Contact IR Sensor

Number of TC Channels: 4

PDR IR-E3
