PDR IR-E3 PRO

PDR IR-E3 PRO

Contact us for price

or
Call +32 14 72 00 62

Description

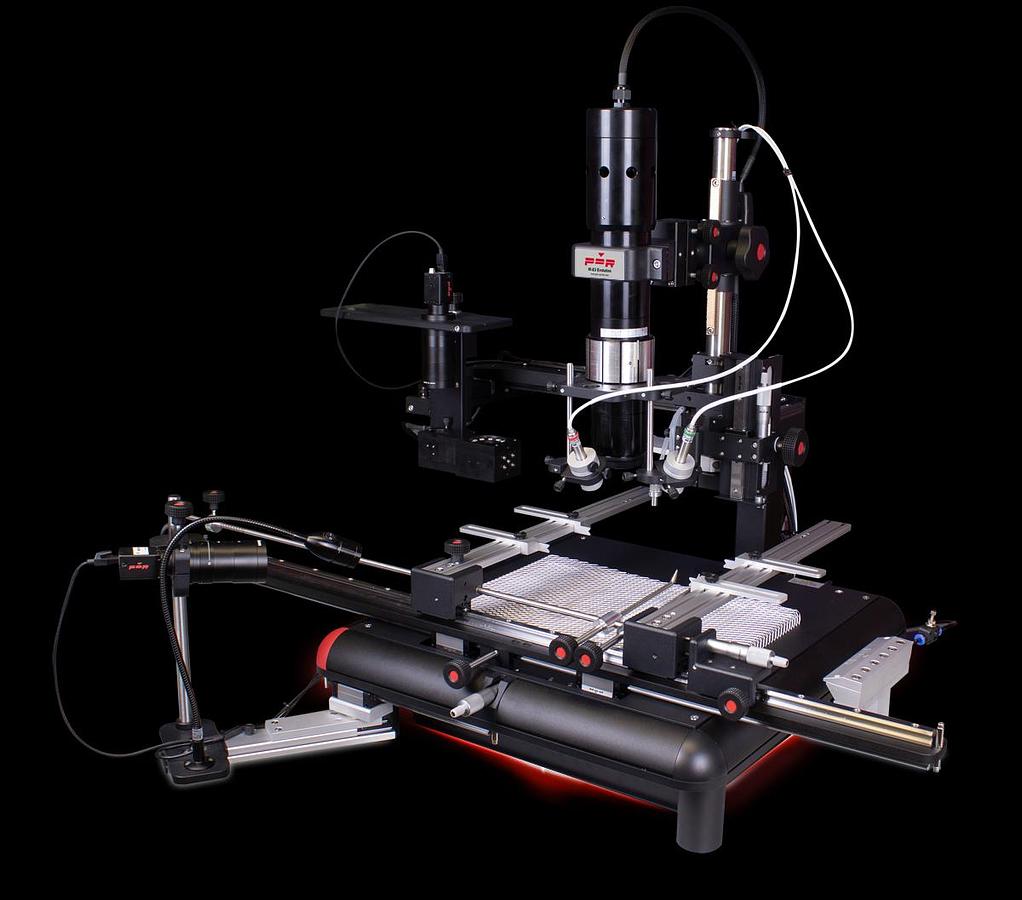

  • Simple Rework Station for all BGA/SMT Components

  • Max PCB Size: 24 x 24”/620 x 620mm
  • Max Component Size: 3.3 x 3.3”/85 x 85mm
  • Min Component Size: 01005

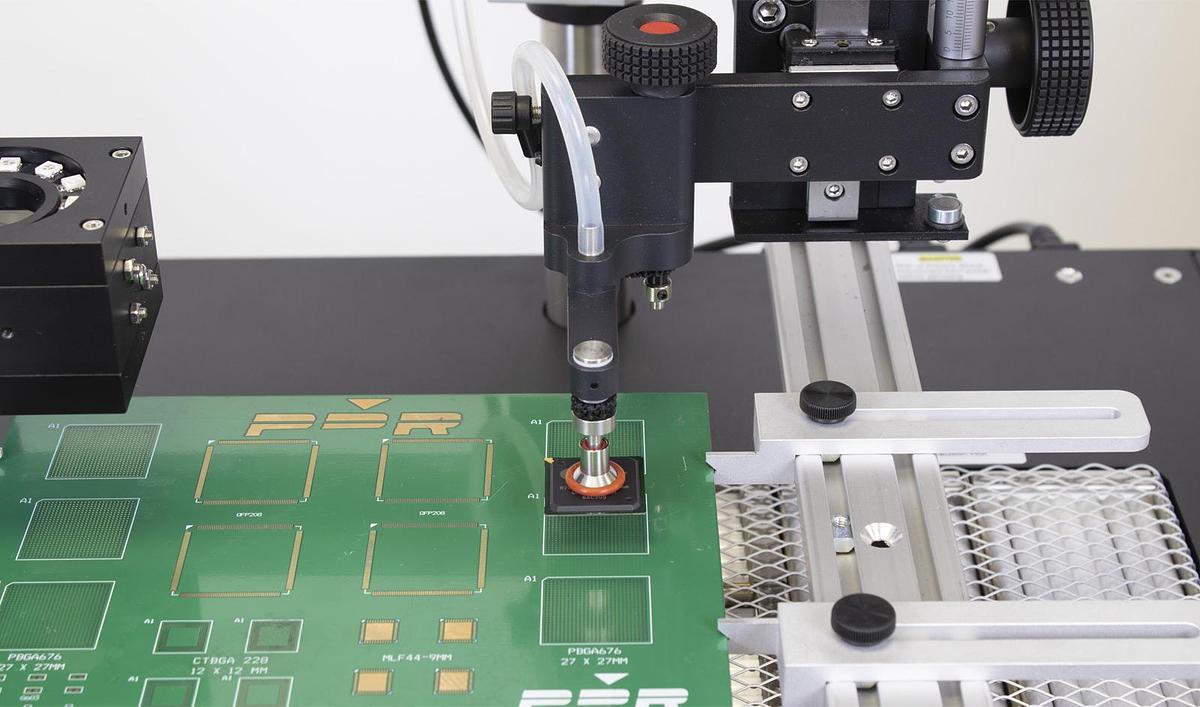

  • Component Removal: Manual Pick-Up System

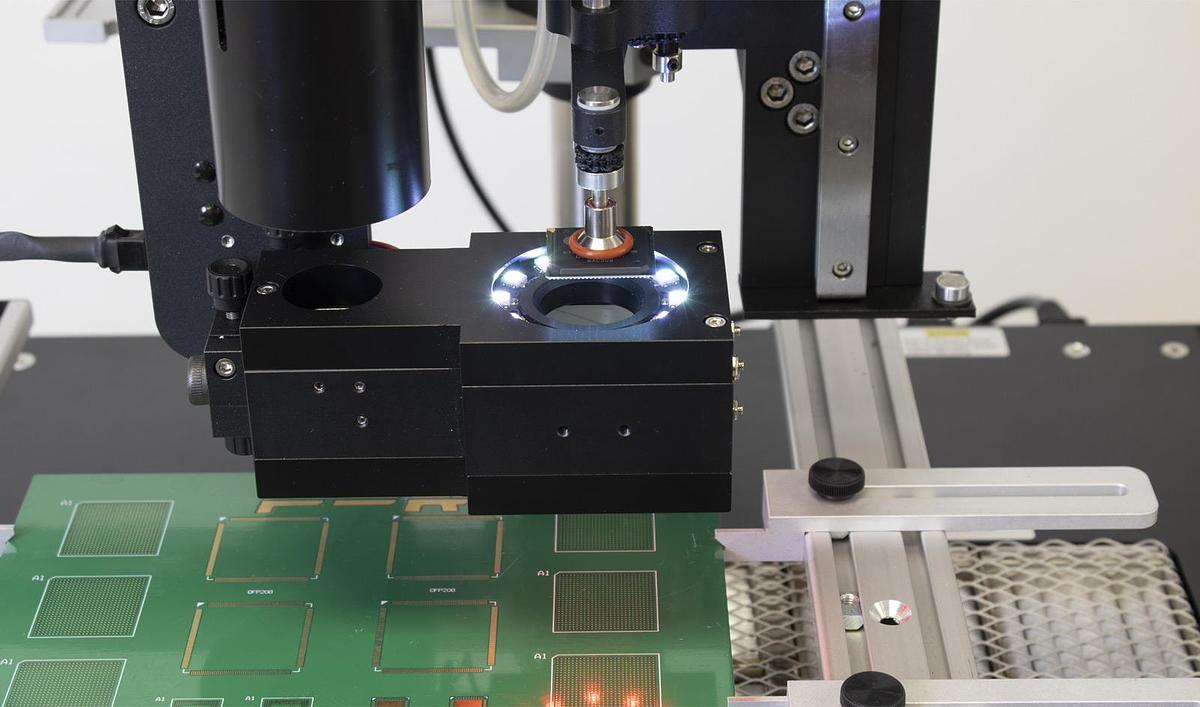

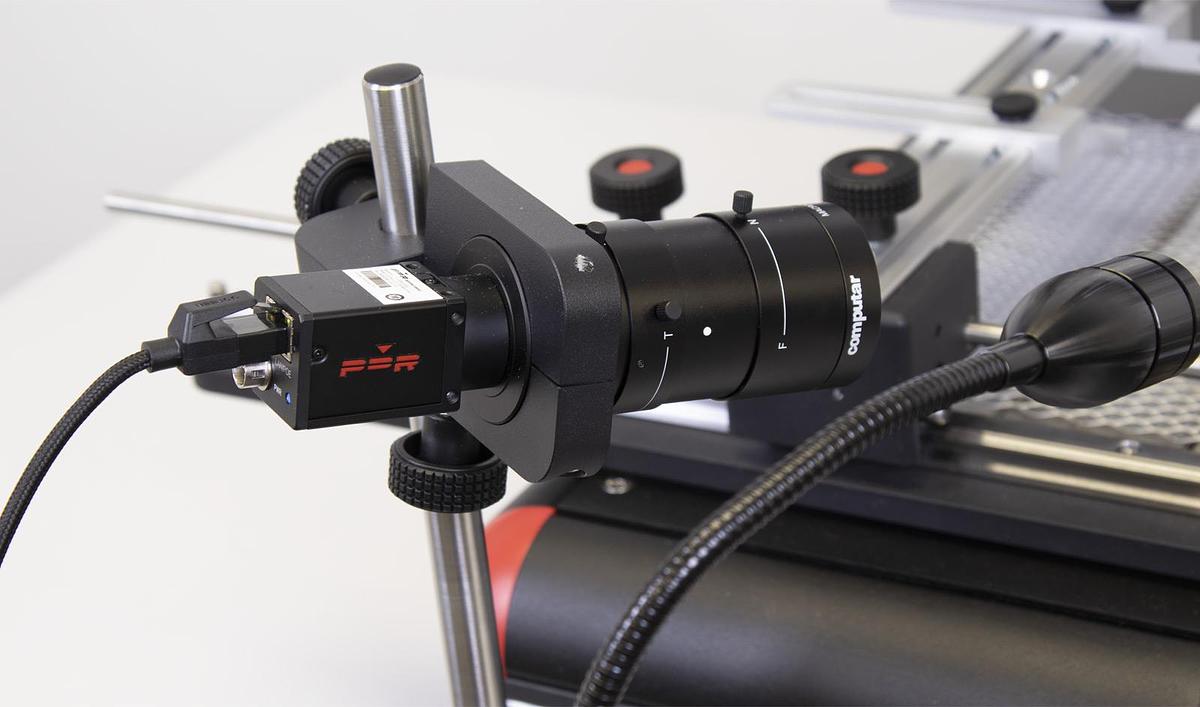

  • Component Placement: Split Beam Prism Alignment/x50 Magnification
  • Placement Accuracy: Up to 10um

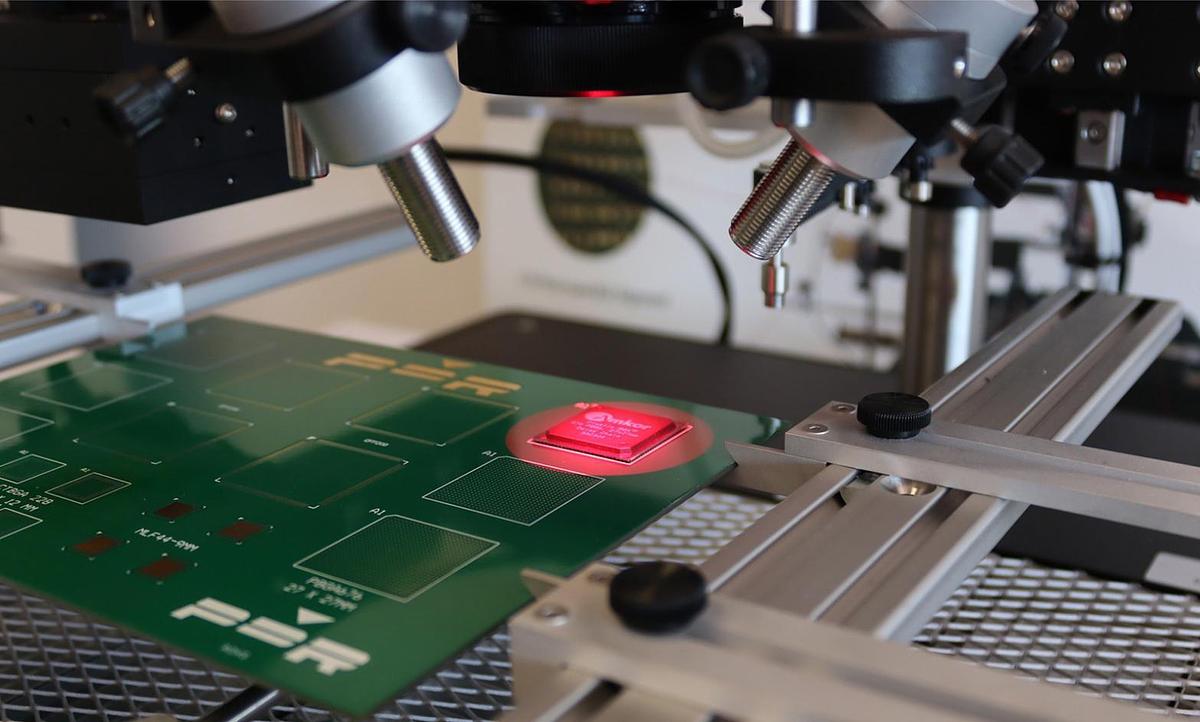

  • Top Heater Power: 150W Focused Infrared up to Ø100mm Spot
  • PCB Preheater Power: 2800W Medium-Wave IR (3 Zones)
  • PCB Preheater Heating Area Size: 14.1 x 9.4”/360 x 240mm

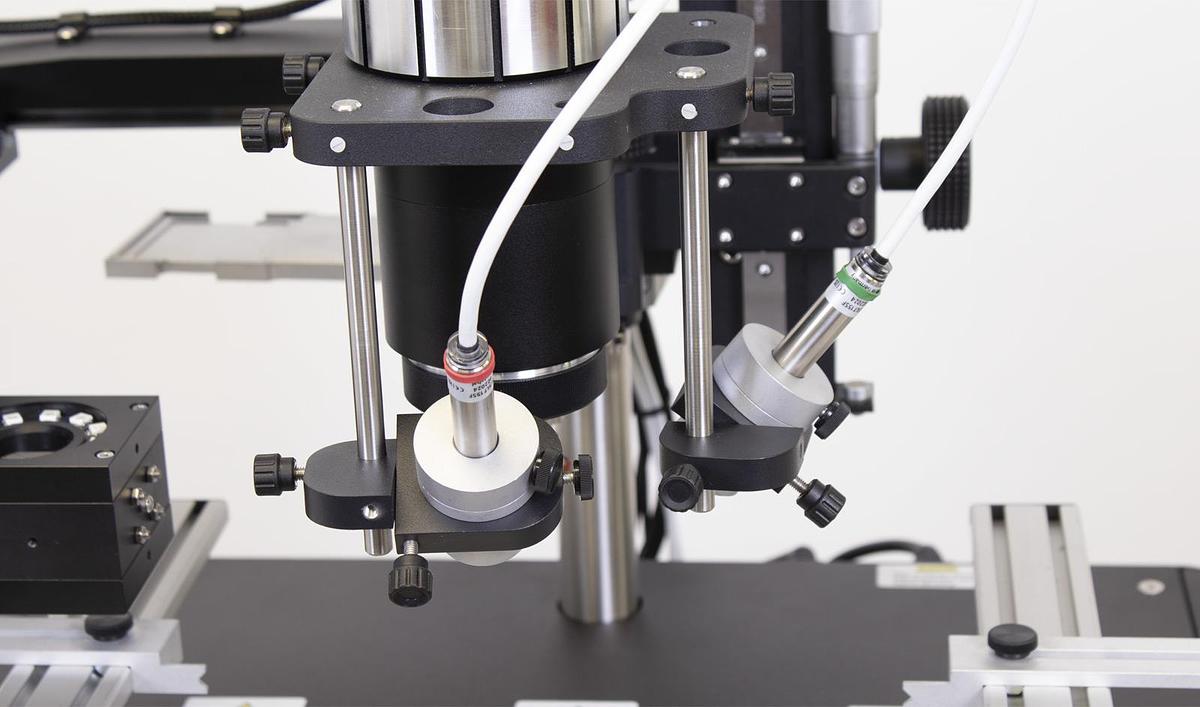

  • Component Temperature Sensing: Non-Contact IR Sensor
  • PCB Temperature Sensing: Non-Contact IR Sensor

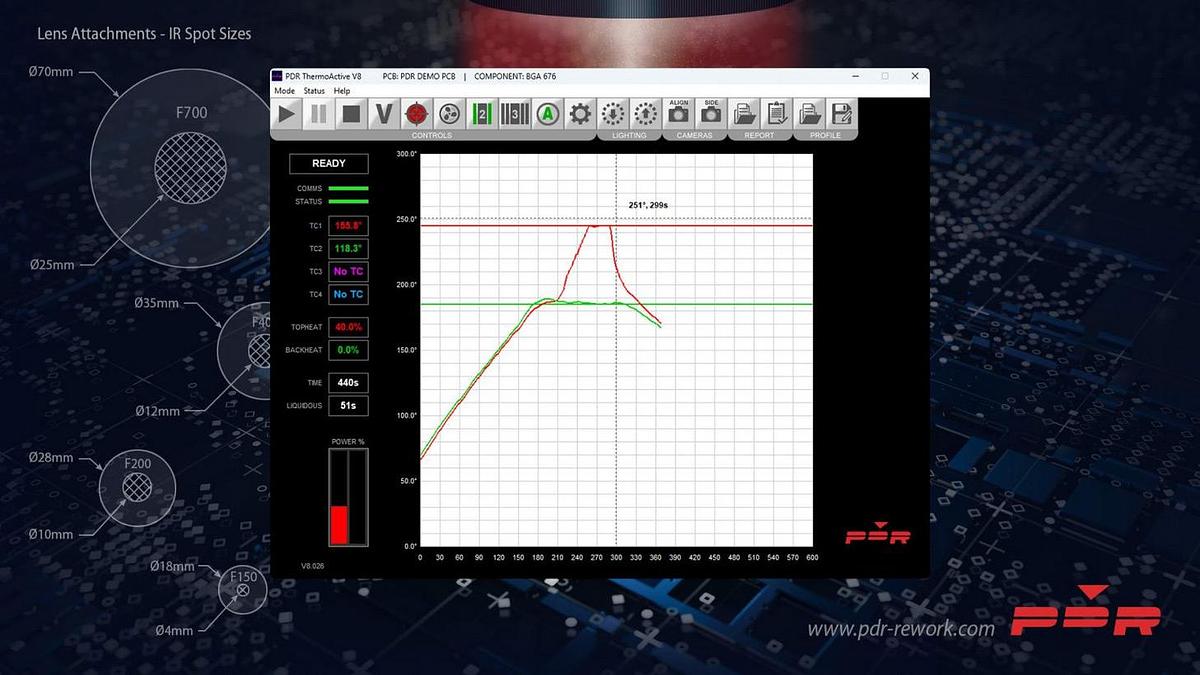

  • Number of TC Channels: 4
    • Show All

    Specifications

    ManufacturerPDR
    ModelIR-E3 PRO
    ConditionNew
    Stock Number00007
