BGA/SMT Rework Station for XL PCBs

Max PCB Size: 18 x 24”/460 x 620mm

Max Component Size: 2.1 x 2.1”/55 x 55mm

Min Component Size: 01005

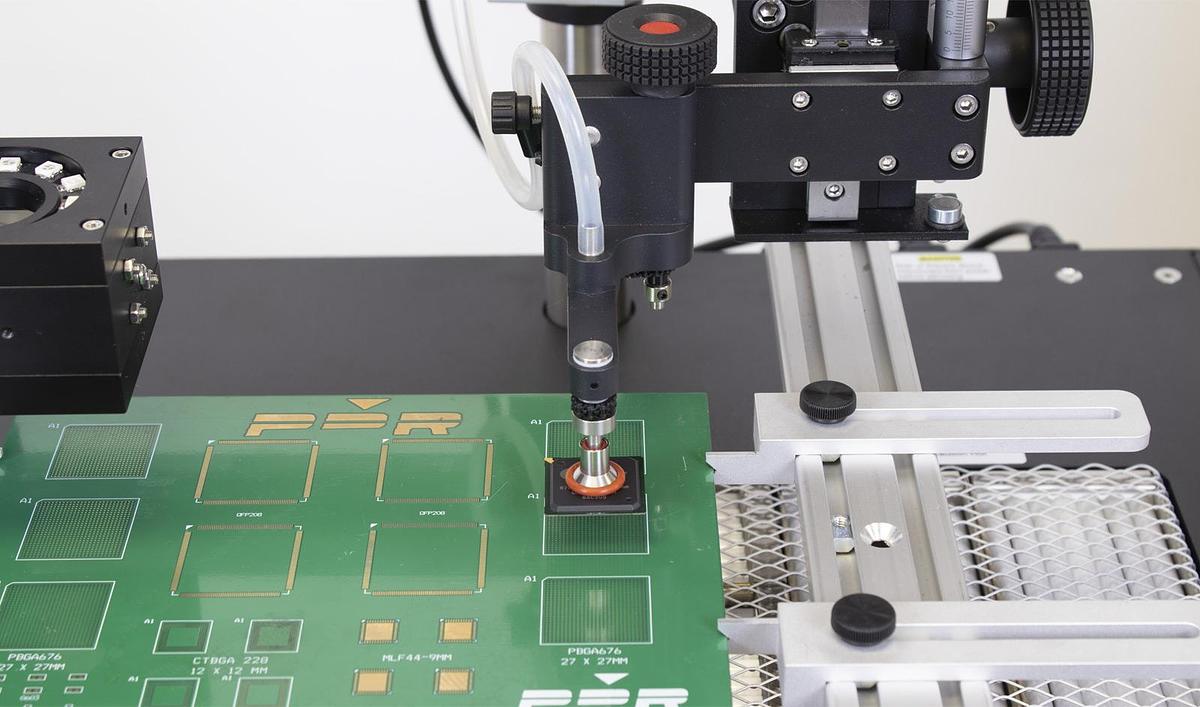

Component Removal: Manual Pick-Up System

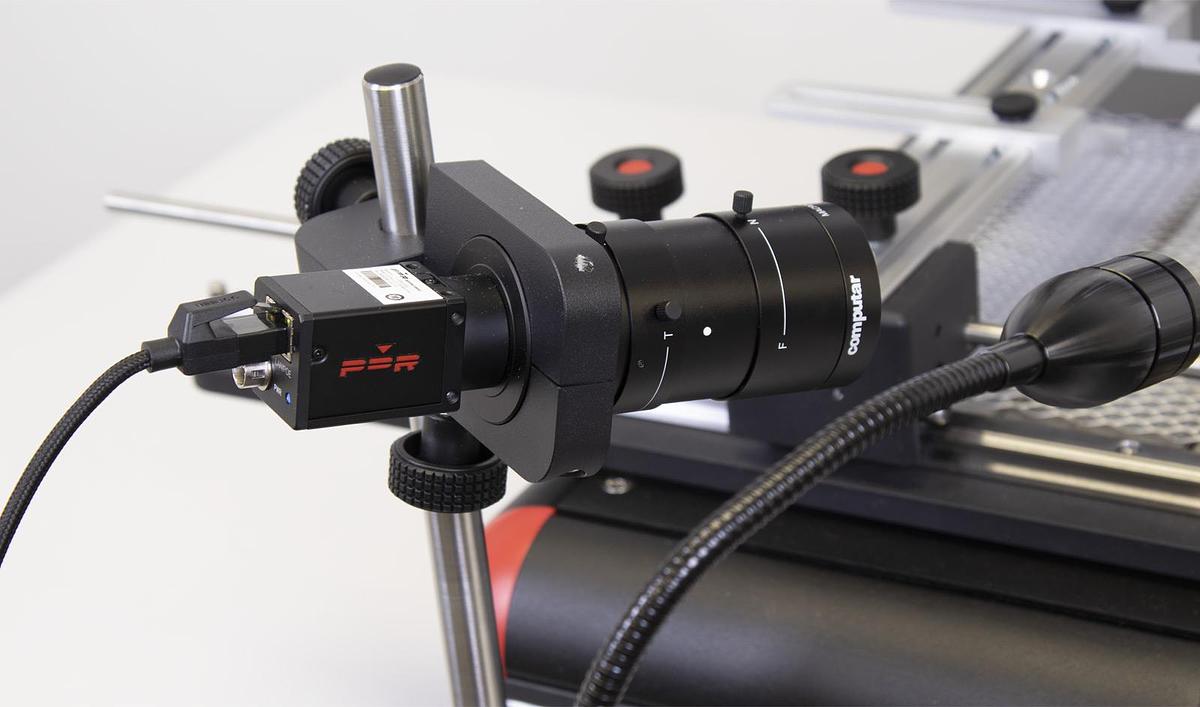

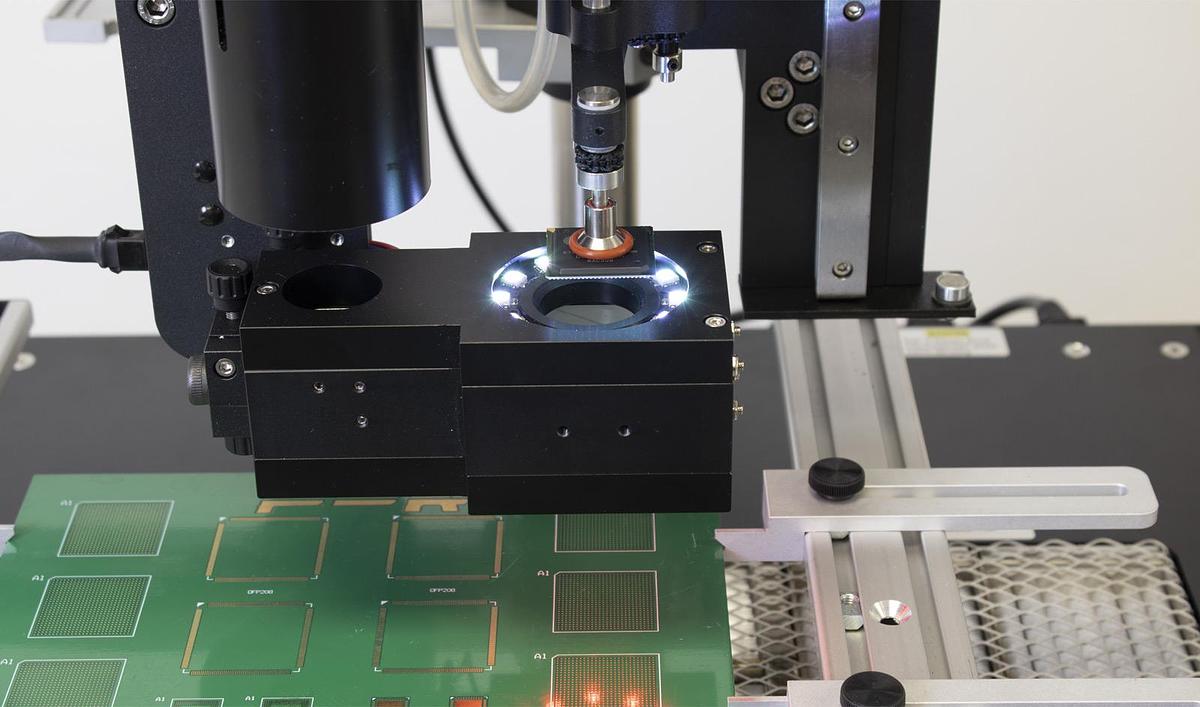

Component Placement: Split Beam Prism Alignment/x50 Magnification

Placement Accuracy: Up to 10um

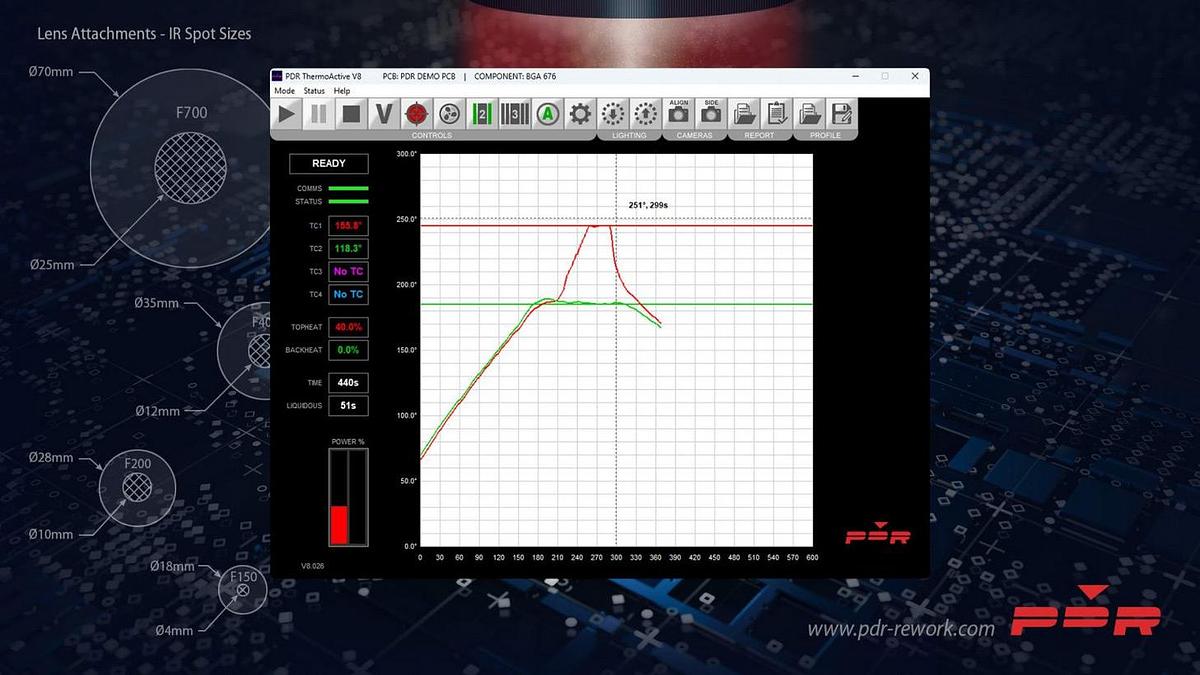

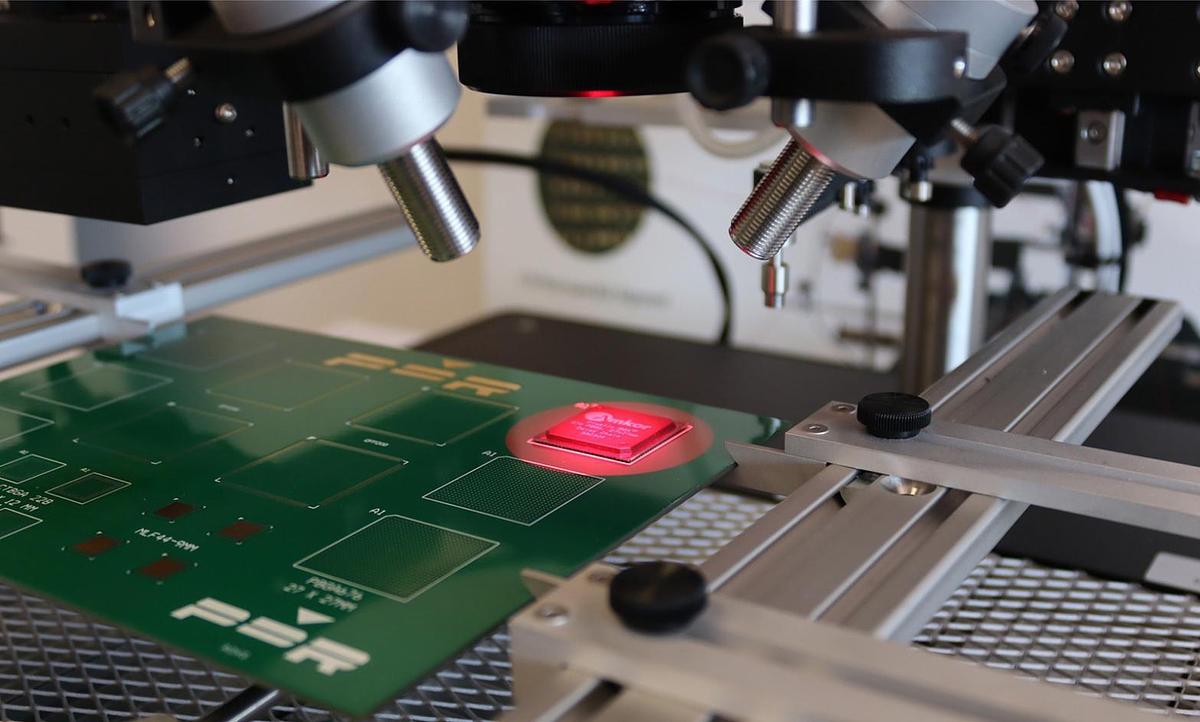

Top Heater Power: 150W Focused Infrared up to Ø70mm Spot on Gantry System

PCB Preheater Power: 3200W Medium-Wave IR (3 Zones)

PCB Preheater Heating Area Size: 19.6 x 9.4”/500 x 240mm

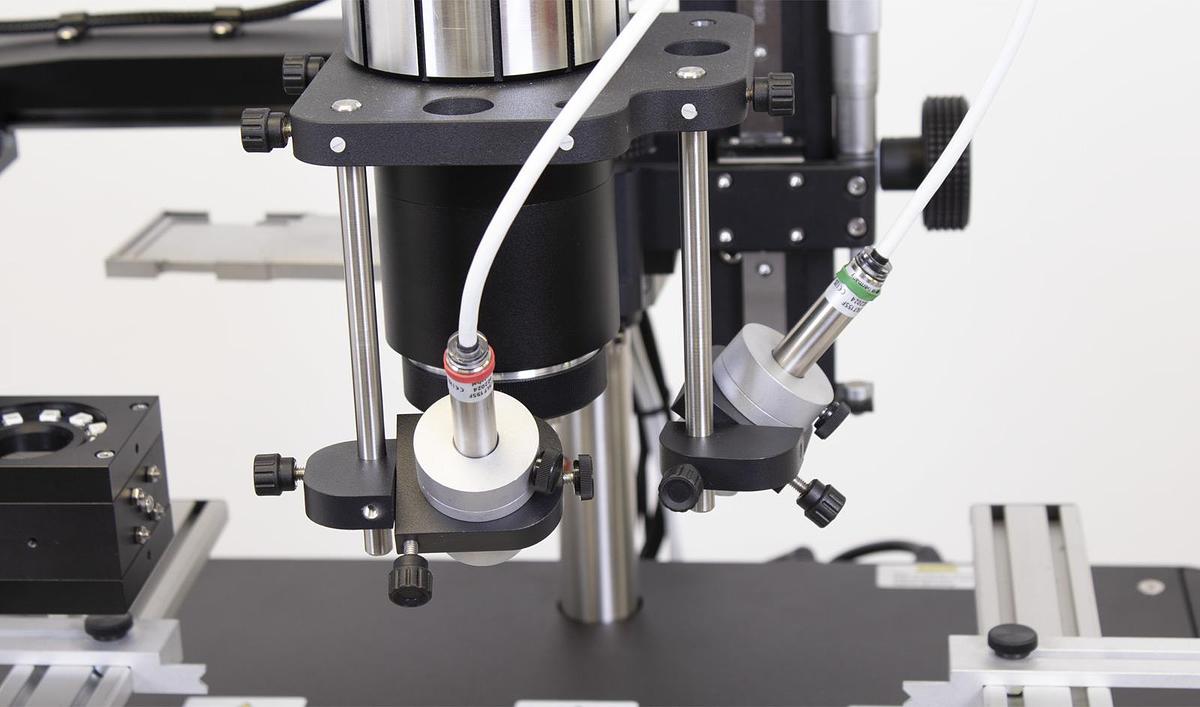

Component Temperature Sensing: Non-Contact IR Sensor

PCB Temperature Sensing: Non-Contact IR Sensor

Number of TC Channels: 4

PDR IR-E6
