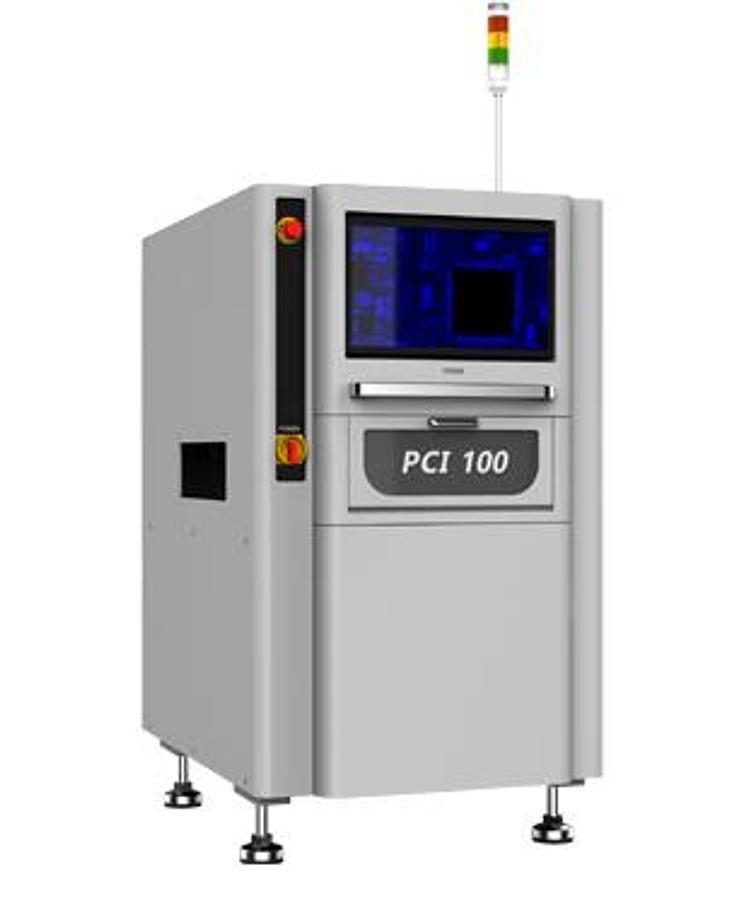

PARMI PCI 100

Scan Type Precision Conformal Coating Inspector

‘PCI 100’ is the first scan type high speed conformal coating inspection AOI machine with coverage and thickness measurement capability. Major inspecting applications are 1) Coating coverage inspection, 2) Contamination/Overspray detection, and 3) Bubble detection.

The machine’s core technology is a vision unit (LSC) which consists of a high resolution camera, 2 channel LED illumination (UV & White light), a Laser module for height measurement, and an optional, CTS I sensor for coating thickness inspection. Camera image pixel resolution is 16.7µm and it utilizes a telecentric lens to get distortion free images. UV LED lighting is used for conformal coating inspection and white LED lighting is used for coating inspection area teaching, and bubble inspection. PARMI utilizes a very innovative simultaneous image acquiring technique from both UV LED and White LED lighting, so all inspections will be completed in a single scan.
